Eigenschaften
- Material: Aluminum
- Oberfläche: Silver
- Waffentyp: Universal Rifles
- Versandgewicht: 0,249kg
- Versandhöhe: 58mm
- Versandbreite: 61mm
- Versandlänge: 160mm
Preise inkl. MwSt., zzgl. Versand
Artikel-Nr.: 352150100
Herst.-Nr.: 575S

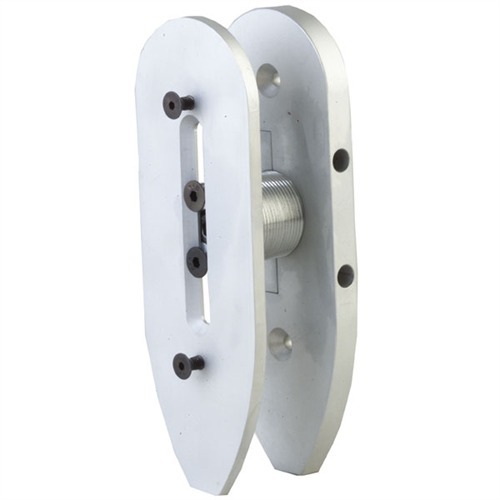

Drei-Wege-Anpassungen für eine perfekte Passform der Waffe, höhere Punktzahlen und verbesserten Schießkomfort. Die Basisplatte wird an der Waffe montiert, dein Pad wird an der Padplatte montiert und das Gewinde bietet eine Gesamtanpassung von 1-1/8" nach innen/aussen. Mach vollständige Umdrehungen oder stoppe die Drehung an beliebiger Stelle innerhalb von 360° und sichere mit den Innensechskantschrauben. Die geschlitzte Oberplatte ermöglicht eine vertikale Anpassung von 1½". Schiebe einen Breako Rückstoßdämpfer in das Rohr für eine saubere, kompakte Installation. Kombiniere es mit Gracos verstellbarem Kombi-Zubehör, um deinen eigenen "Try Stock" zu erstellen.Der STANDARD ADJUSTABLE BUTT PLATE von GRACO CORP bietet dir die Möglichkeit, die Länge, den Drop und die Rotation deines Gewehrs optimal anzupassen.
Mit drei verschiedenen Einstellmöglichkeiten erreichst du eine perfekte Passform für dein Gewehr, was zu höheren Punktzahlen und verbessertem Schießkomfort führt. Die Basisplatte wird am Gewehr montiert, während dein Pad an der Padplatte befestigt wird. Das Gewinderohr ermöglicht eine Gesamtverstellung von 1-1/8 Zoll nach innen und außen. Du kannst volle Umdrehungen machen oder die Rotation überall im 360°-Bereich stoppen und mit den Innensechskantschrauben sichern.
Matte Aluminium-Oberfläche. 5-13/16" (14.7cm) lang x 2" (5cm) breit x 9/16" (14.3mm) dick (vollständig auf "in" eingestellt). Die Befestigungslöcher der Basisplatte sind 3¼" (82.5mm) Abstand von Mitte zu Mitte. Das Standardmodell für Pumpen, Over/Unders und Side-by-Sides hat ein zentriertes Gewinderohr zwischen den Befestigungslöchern. Es ist erforderlich, ein 1-1/8" (28.6mm) Loch im Schaft zu bohren.
Boyd's SS Evolution 10/22 stock 17.08.2016
I wanted to make the Boyd's ss Evolution stock fit me better. I use it for sage rats and after a day of shooting my neck would start hurting. This adjusts down about 3/4" and twists out out which was perfect to raise the comb of the stock and fit my shoulder. A few mods were needed like drilling holes. I have not shaped it to the stock yet. However, once I do I will duracoat it to match the receiver. I would buy another once I fit this one.
Just right 20.07.2015
I mounted this plate on an old single-barrel Winchester 101 Trap that I recently purchased. Stock had been cut so far back to the point it was midway in the slope of the Monte Carlo. It had also been cut at such a "custom" angle that spacers and a thick pad would not have allowed for a proper fit. The gun was absolutely useless for me although I knew that going in.
I installed one of these along with a T550 Pachmayr Trap Pad. Fitting the plates was tedious with much "cut, grind, and try" but the end result is a great fitting stock. I polished the exposed edges to a shiny finish with a sequence of filing, sanding, and rubbing with 0000 steel wool and "Mother's Aluminum Mag Polish." Due to the Monte Carlo being butchered, I had to lower the pad to what appears to be an excessive amount, but with the adjustments on this plate, I was able to get a perfect fit for me. The option of fitting the plate to the size of the recoil pad rather than fitting the recoil pad to a stock or a spacer has allowed for a greater area for recoil to occur. Might help with felt recoil.
You don't have to be a machinist or an expert gunsmith to install this plate, but basic wood and metal working skills are essential. The fitting of the plates to the stock and recoil pad and the use of a forstner bit near an existing hole takes time and patience.
