810301021877 Die einteilige Konstruktion vereint Ring und Basis zu einer einzigen Einheit. Durch die Eliminierung des Ring/Basis-Gelenks wird nicht nur das Gewicht minimiert, sondern auch eine stärkere Montage gewährleistet. Jeder Ringdeckel ist 5⁄8" breit, mit vier TORX-Schrauben, um zu verhindern, dass große Zielfernrohre verrutschen oder sich verschieben. Entworfen von Mel Forbes von New Ultralight Arms.
Auf Lager
Lieferzeit ca. 14-21 Werktage. 2 Stk. im Lager USA
Lieferzeit ca. 14-21 Werktage. 2 Stk. im Lager USA
When Every Ounce Counts; The Strength Of Steel Without The Weight

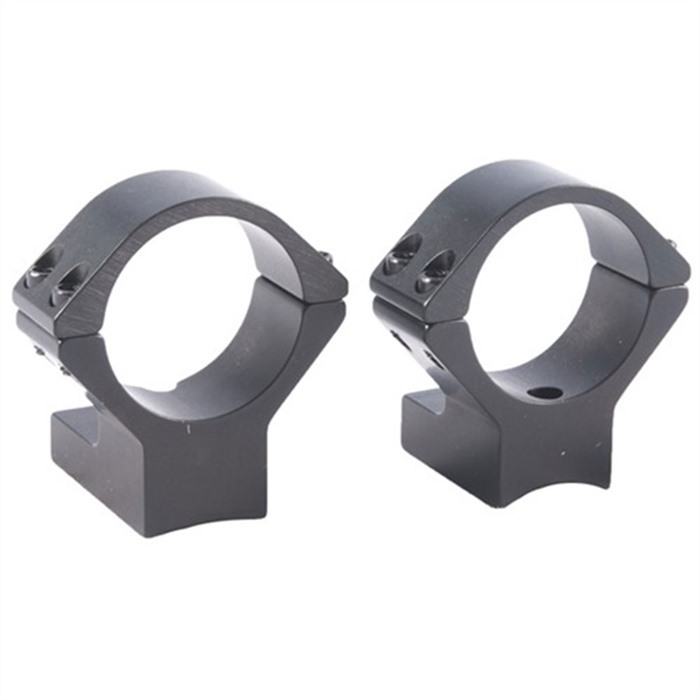

One-piece construction blends the ring and base into a single unit. Eliminating the ring/base joint not only keeps weight to a minimum, it provides a stronger mount. Each ring cap is 5⁄8" wide, with four, TORX screws, to keep large scopes from slipping or shifting. Designed by Mel Forbes of New Ultralight Arms.
SPECS: 7000 series aluminum, black, anodized, matte finish. Accepts 1" dia. scopes, unless otherwise listed in fits column for 30mm dia. scopes. Height from bottom of ring to top of receiver: Low - .400" (10.1mm), Med - .500" (12.7mm). High - .640" (16.3mm), X‑High - .740" (18.8mm). Approx. weight 2.1 oz. (59 g). Some heights vary, see chart below. Rem. 700 also fits 721/722/725 and 40X models. Rem. Model Seven fits receivers with four screw holes. Savage AccuTrigger fits round top centerfire receivers with AccuTrigger. Win. 70 fits .860" rear hole spacing only.
Wenn jedes Gramm zählt; Die Stärke von Stahl ohne das Gewicht
Die einteilige Konstruktion vereint Ring und Basis zu einer einzigen Einheit. Durch die Eliminierung des Ring/Basis-Gelenks wird nicht nur das Gewicht minimiert, sondern auch eine stärkere Montage gewährleistet. Jeder Ringdeckel ist 5⁄8" breit, mit vier TORX-Schrauben, um zu verhindern, dass große Zielfernrohre verrutschen oder sich verschieben. Entworfen von Mel Forbes von New Ultralight Arms.
SPECS: 7000er Serie Aluminium, schwarz, eloxiert, matte Oberfläche. Akzeptiert 1" Durchmesser Zielfernrohre, es sei denn, in der Passspalte für 30mm Durchmesser Zielfernrohre anders angegeben. Höhe vom Boden des Rings bis zur Oberseite des Empfängers: Niedrig - .400" (10.1mm), Mittel - .500" (12.7mm). Hoch - .640" (16.3mm), X‑Hoch - .740" (18.8mm). Ungefähr 2.1 oz. (59 g). Einige Höhen variieren, siehe Tabelle unten. Rem. 700 passt auch auf 721/722/725 und 40X Modelle. Rem. Modell Seven passt auf Empfänger mit vier Schraublöchern. Savage AccuTrigger passt auf runde Oberseite von Repetierern mit AccuTrigger. Win. 70 passt nur auf .860" Abstand der hinteren Löcher.
Top Takeaways
Einteilige Konstruktion
Minimales Gewicht
Starke, sichere Montage
Eigenschaften
Elevation:20 MOA
Height:.500''
Modell:725,700,40-X,722,721
Oberfläche:Black
Scope Tube Diameter:30mm
Style:Direct Mount
Waffentyp:Remington
Versandgewicht:0,111kg
Versandhöhe:64mm
Versandbreite:102mm
Versandlänge:203mm
UPC:810301021877
Kundenbewertungen
Kundenbewertungen (13)
4,8 / 5
Sehr empfehlenswert
The BEST I've found for 10/22's. 01.05.2014
I've installed these rings on 5 or 6 guns now. These are the nicest looking and best working scope mounts I have found for 10/22's if you want a nice traditional look and you're sick of seeing miles of picatinny rail on every gun you own. They are offset so you can reverse each one to get good positioning on the scope tube (as close to the occular and objective lenses as possible while staying away from the erector tube area), they are very well finished, easy to install, line up perfectly and are very sturdy. Order the MEDIUM height for any scope with an objective between 51 and 57 mm. Order LOW height for scopes 50 mm and under. Good shootin'!!
Sehr empfehlenswert
Perfect 23.01.2014
Mounting a Leupold 6.5-20x40 on a Savage 12 BJTV w/ thumbhole stock and needed the scope as low as possible. These low extended rings were THE PERFECT solution. Scope is now EXACTLY where I wanted it.
I have 4 sets of Talley rings on 4 separate rifles and could not ask for better rings. Best rings for the dollar out there.
Sehr empfehlenswert
Delightfully clean 10/22 scope mounts 10.08.2013
These scope mounts for the Ruger 10/22 are absolutely elegant. Let me share some background info that can help make this relevant to everyone who appreciates 10/22s.
I love 10/22s -- at the moment I have five. I tweak and tune the daylights out of them for both performance and appearance. I'm fond of the contour of the 10/22 receiver and feel Ruger's furnished mount base spoils the lines. For this reason I've made small one-piece bases for my halographic red dots and small two-piece bases for scopes and tube-type red dots -- all starting from Ruger's base.
With the Talley bases, this is no longer necessary. They cover a minimum of the top of the receiver. They're beautifully made and finished. And they hold a scope tightly without marring the finish.
My only wish is that they were also available in a silver finish. They'd look spectacular with my silver Ultradot red dots on my stainless10/22s. I might buy additional black ones and send them off to be reanodized silver. I like them that much.
Sehr empfehlenswert
GREAT RINGS 10.01.2013
THEY ARE TRUE, LITE, AND HAVE TORX SCREWS SO THEY CAN BE REMOVED AND TIGHTENED MANY TIMES IF NEEDED. 25#S OF TORQUE IS PLENTY. GREAT PRODUCT.
Sehr empfehlenswert
Excellent Product 09.07.2012
These are the best rings I have found for my custom Mauser rifles. The finish is good enough I do not need to polish and re-finish to make them match the Matte finish of Leupold scopes. They are better than some of the more costly rings I have bought and have built in bases so one less thing to buy.
Sehr empfehlenswert
excellant 28.10.2011
I used these to install a Bushnell Elite scope on my Browning A bolt. The rings fit perfectly and are very secure.
Sehr empfehlenswert
Great Rings! 23.08.2011
Used this to mount a varmint scope (42mm objective) on my Anschutz 1732 in .22 Hornet. Height was perfect for this application, leaving only a few millimeters of space between the barrel and scope. A bigger objective scope would require higher rings. Easy to install, well made, and rock solid mount and ring combination.
Sehr empfehlenswert
A-Bolt LW Scope Mount 20.11.2010
I used these to mount a 2.5 X 8 Leupold on a 20" Micro Hunter. They're extremely light, but appear to be rugged. The fit is perfect, the scope lined up very square, no need for lapping. I torqued the base screws @ 30 inch/lbs and a touch of blue loctite. The ring screws were evenly torqued @ 22.5. They compliment the clean lines of the little carbine without sacrificing quality. It placed the scopes objective about 1/4" above the barrel, and allowed more than an ample amount of placement for eye relief. I'm sold.
Bedingt empfehlenswert
Great quality, not very 28.09.2010
Wanted to replace the medium-height rings that came with my Tikka T3 in 6.5x55 with some that were stronger and lower. I prefer to use a 2-7x32 scope and like to mount it nice and low. The Talley "low" rings, while very strong and well-made, appear to have enough room for a 40mm objective lens scope. They don't appear to be any lower than the factory rings. Other than that (and some embarrassing typos on the packaging), they are great.
Sehr empfehlenswert
Perfect fit for short action 07.03.2010
I mounted these on a Winchester Ranger short action and the fit is perfect. I tried a few other brands, two-piece bases overlapped the action area and one-piece bases did not fit (the ranger action is a bit shorter than a standard short action). They look great on the gun and alignment was right on. No shims required.
Sehr empfehlenswert
Long-term Test 16.01.2010
I put a set of these on my Tikka in .338 Winchester magnum several years ago after the "B" brand failed to hold the scope. My hunting load sends a 225 gr bullet out the muzzle at 2900 fps over my Oehler chrono; there is recoil. The Talley lightweights hold the Zeiss 3.5-10X scope absolutely rock solid year after year of hard hunting use in Montana. This is a quality product.
Sehr empfehlenswert
THE BEST - BAR NONE 07.12.2009
I have sixteen scoped guns and have experience with a number of name brand manufacturers of bases and rings. Tally makes a product that is simple to install and, at least in my case, needed no shimming or adjustments to align the rings which I check with a Sinclair Scope Alignment Tool. So far I have mounted three scopes with Tally mounts with no problem. Nuff said.
Sehr empfehlenswert
Great Product 07.10.2009
I was sort of skeptical about how these would work (no allowance for adjustments), but I heard a good report about Talley, so I gave them a shot. Great fit and finish, and no adjustment needed. In fact, the positional tolerances on these things are so good, that my scope needed less adjustment than with any other type of mounting system I've used lately. Note: For the medium height setup, a 40mm scope is the max. diameter for the Marlin 336.
Brownells Austria GmbH
Hauptstraße 13-15
2332 Hennersdorf
Österreich
info@brownells.at
Sicherheitshinweise für den LIGHT WEIGHT SCOPE MOUNT TALLEY REMINGTON 700 SA 30MM MEDIUM 20 MOA SCOPE MOUNTS
Einleitung
Vielen Dank, dass du dich für den LIGHT WEIGHT SCOPE MOUNT TALLEY REMINGTON 700 SA 30MM MEDIUM 20 MOA SCOPE MOUNTS entschieden hast. Dieser Leitfaden bietet wichtige Informationen zur sicheren Verwendung, Installation und Entsorgung des Produkts, um deine Sicherheit und die anderer zu gewährleisten.
Allgemeine Sicherheitsrichtlinien
Stelle sicher, dass das Produkt für deine spezifischen Anforderungen geeignet ist.
Überprüfe das Produkt vor der Verwendung auf sichtbare Schäden oder Mängel.
Halte das Produkt außerhalb der Reichweite von Kindern.
Verwende das Produkt nur für den vorgesehenen Zweck.
Informiere dich über Rückrufaktionen über die Safety GatePlattform der EU.
Spezifische Sicherheitsvorkehrungen für die Verwendung
Achte darauf, dass der Scope Mount korrekt auf dem Gewehr montiert ist, um ein Verrutschen oder eine Fehlfunktion zu vermeiden.
Verwende nur die empfohlenen Schrauben und Werkzeuge für die Installation.
Überprüfe regelmäßig die Festigkeit der Schrauben, um sicherzustellen, dass der Mount sicher befestigt ist.
Vermeide es, den Scope Mount extremen Temperaturen oder Feuchtigkeit auszusetzen, um Materialschäden zu verhindern.
Wenn du unsichere Produkte oder Unfälle bemerkst, melde diese umgehend den zuständigen Behörden.
Anweisungen zur Installation und Verwendung
Vorbereitung
Stelle sicher, dass du über die erforderlichen Werkzeuge verfügst: TORXSchraubendreher und eventuell einen Drehmomentschlüssel.
Überprüfe, ob alle Teile des Scope Mounts vorhanden sind.
Installation
Platziere den Scope Mount auf dem Empfänger des Gewehrs.
Stelle sicher, dass der Mount richtig ausgerichtet ist.
Verwende die TORXSchrauben, um den Mount am Empfänger zu befestigen. Ziehe die Schrauben gleichmäßig und sicher an, um ein Verrutschen zu verhindern.
Überprüfe die Höhe des Mounts: Low .400" (10,1mm), Medium .500" (12,7mm), High .640" (16,3mm), XHigh .740" (18,8mm).
Verwendung
Montiere das Zielfernrohr gemäß den Anweisungen des Herstellers.
Überprüfe die Ausrichtung des Zielfernrohrs und stelle sicher, dass es fest sitzt.
Teste die Stabilität des Mounts und des Zielfernrohrs vor dem Schießen.
Entsorgungsanweisungen
Entsorge das Produkt gemäß den örtlichen Vorschriften für die Entsorgung von Metall und Kunststoff.
Vermeide die Entsorgung im Hausmüll, um die Umwelt zu schützen.
Informiere dich über Recyclingmöglichkeiten in deiner Nähe.
Kontaktinformationen für weitere Unterstützung
Für weitere Informationen oder Unterstützung zu diesem Produkt wende dich bitte an den Hersteller oder deinen Fachhändler. Achte darauf, alle relevanten Informationen zum Produkt bereitzuhalten, einschließlich Modellnummer und Kaufdatum.
Diese Sicherheitshinweise sind wichtig, um die sichere Verwendung des LIGHT WEIGHT SCOPE MOUNT TALLEY REMINGTON 700 SA 30MM MEDIUM 20 MOA SCOPE MOUNTS zu gewährleisten. Bitte befolge die Anweisungen sorgfältig, um mögliche Risiken zu vermeiden.
