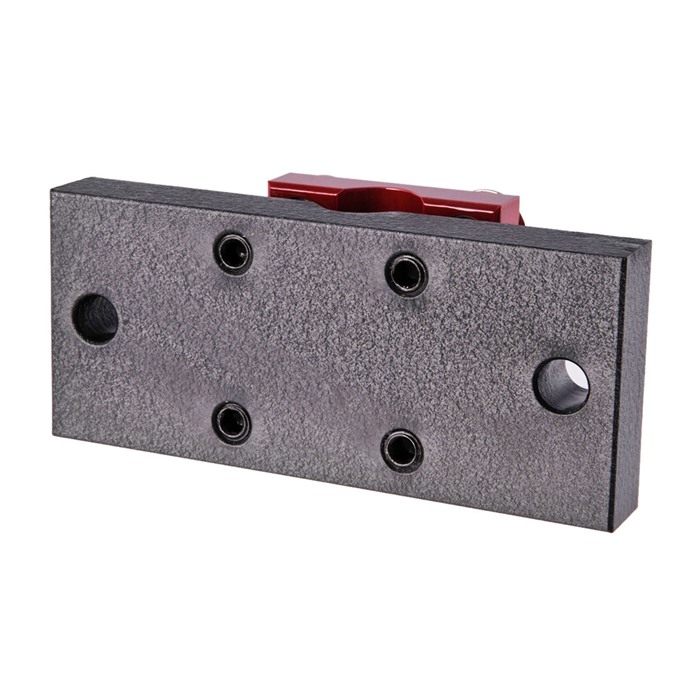

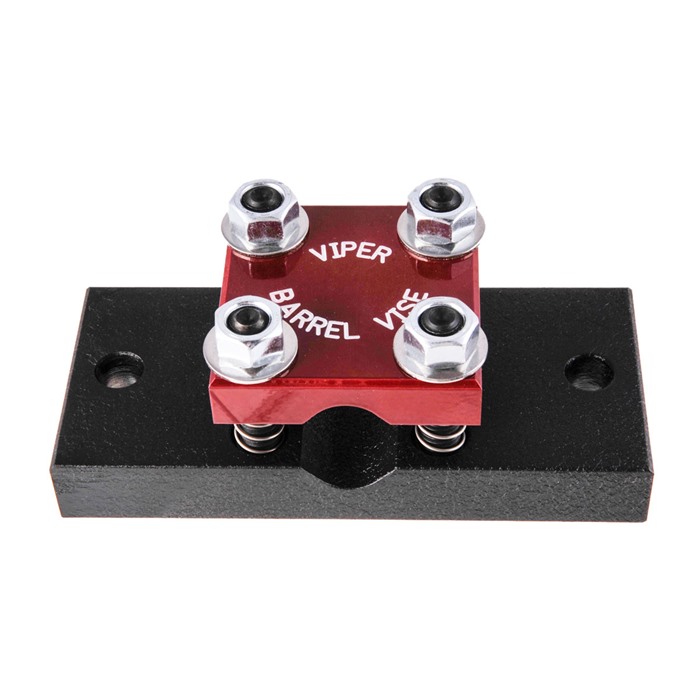

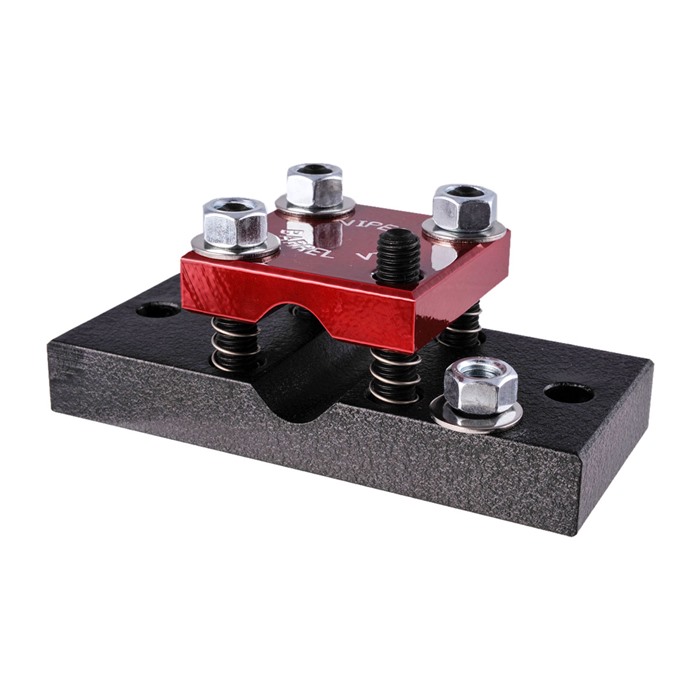

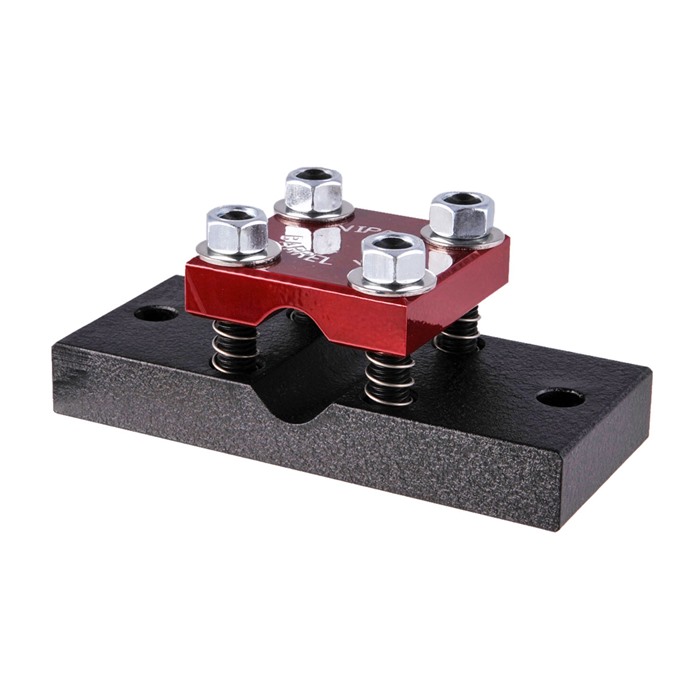

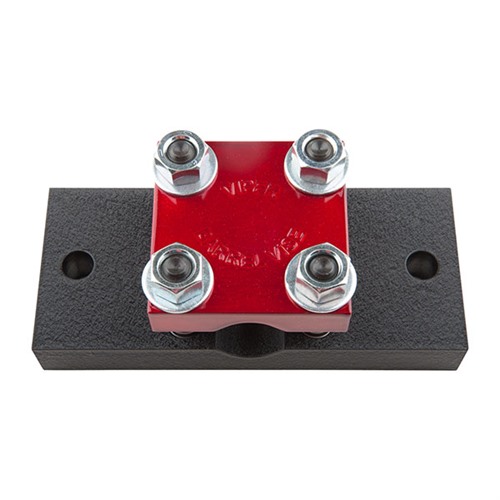

The Viper Barrel Vise is constructed of 6061 aluminum. The bottom half is 1” thick, for added strength, when mounting to your work bench. All four hardened, threaded bolts have a support spring. These springs keep the top half from moving around during barrel insertion and removal. Each spring is fully captured on each end for stability.
SPECS: Base is 7" x 3" with 5 3/4" c-t-c hole spacing for mounting; top plate is 3" square; four 1/2" bolts for clamping; and will accommodate 0.750" to 1" OD barrels.
Der Viper Barrel Vise ist aus 6061 Aluminium gefertigt. Die untere Hälfte ist 1” dick, was zusätzliche Stabilität beim Montieren auf deiner Werkbank bietet. Alle vier gehärteten, gewindeten Bolzen haben eine Unterstützungsspringfeder. Diese Federn verhindern, dass sich die obere Hälfte während des Einsetzens und Entfernens des Laufs bewegt. Jede Feder ist an beiden Enden für Stabilität vollständig gefasst.
TECHNISCHE DATEN: Basis ist 7" x 3" mit 5 3/4" Lochabstand für die Montage; obere Platte ist 3" quadratisch; vier 1/2" Bolzen zum Klemmen; und passt für Läufe mit einem Außendurchmesser von 0.750" bis 1".
