SUPERLATIVE ARMS LLC RIGHT HAND ADJUSTABLE PISTON SYSTEM W/0.750" GAS BLOCK FOR AR-15 The Superlative Arms patent pending “Bleed Off”, direct impingement, gas block for the AR15 platform adjusts the gas flow by bleeding the gas out of the block instead of restricting the flow like conventional adjustable blocks. NOT RATED FOR 300 BLACKOUT IN PISTOL LENGTH Results: The pressure used in the block is reduced only to the amount required to drive the bolt carrier. The remaining gas / pressure are bled out of the block allowing the system to run much cleaner and cooler. Reduction of felt recoil. Patented adjustment detent is located outside of the block and therefore no contamination. The gas adjustment screw does not restrict the gas flow; therefore there is no erosion or seizing of the screw / no loss of detent due to carbon build up. Although it is removable, we have added a safety mechanism, which stops you from unintentionally backing the screw all the way out. When using SBR’s and / or suppressors the bleed off port allows the excessive pressure to be exhausted out of the block reducing blow back. DATA: Firearm Type: AR15 Gas Length: Pistol, Carbine, Mid-Length, and Rifle Weight: 12.8 oz., 13.1 oz, 13.4 oz, and 13.8 oz Piston Block Attachment Type: Clamp On, Socket Head Cap Screws Piston Block Material and Finish: 416 SS, Melonite Carrier: Ion Bonded, 1 pc. Carrier w/ Skis and Dimpled Key Gas Adjustment: 30 Locked Positions, Front Of Block Bleed Off Port: Front Of Block INCLUDED: Piston Block Assembly Carrier (bolt not included). (1) 3/32" X 6" Hex Key (tool to adjust gas screw) (1) 9/64" X 6" Hex key (tool to install/remove gas block plug) (1) Bushing and insert tool Installation Instructions & QR Code For Video Tutorial
Entdecke das innovative Piston-System für dein AR-15!
Das SUPERLATIVE ARMS ADJUSTABLE PISTON SYSTEM mit einem 0.750" Gasblock für die rechte Hand ist die perfekte Lösung für dein AR-15. Dieses patentierte System nutzt die "Bleed Off"-Technologie, um den Gasfluss effizient zu regulieren, ohne ihn wie herkömmliche Systeme einzuschränken.
Produktbeschreibung
Das SUPERLATIVE ARMS LLC Piston-System bietet folgende Vorteile:
- Geringerer Rückstoß: Der Druck im Block wird nur auf das notwendige Minimum reduziert, um den Verschluss zu betreiben, wodurch das System sauberer und kühler läuft.
- Patentiere Justierung: Der Justierungsdetent befindet sich außerhalb des Blocks, was eine Kontamination verhindert.
- Keine Einschränkung des Gasflusses: Die Schraube zur Gasjustierung schränkt den Gasfluss nicht ein, was Erosion oder Festfressen der Schraube vermeidet.
- Sicherheitsmechanismus: Ein Mechanismus verhindert, dass du die Schraube versehentlich ganz herausdrehst.
- Bleed Off Port: Bei Verwendung von SBRs oder Schalldämpfern kann der übermäßige Druck über den Bleed Off Port abgelassen werden, was den Rückstoß reduziert.
Daten
- Waffenart: AR15
- Gaslängen: Pistol, Carbine, Mid-Length und Rifle
- Gewicht: 12.8 oz, 13.1 oz, 13.4 oz und 13.8 oz

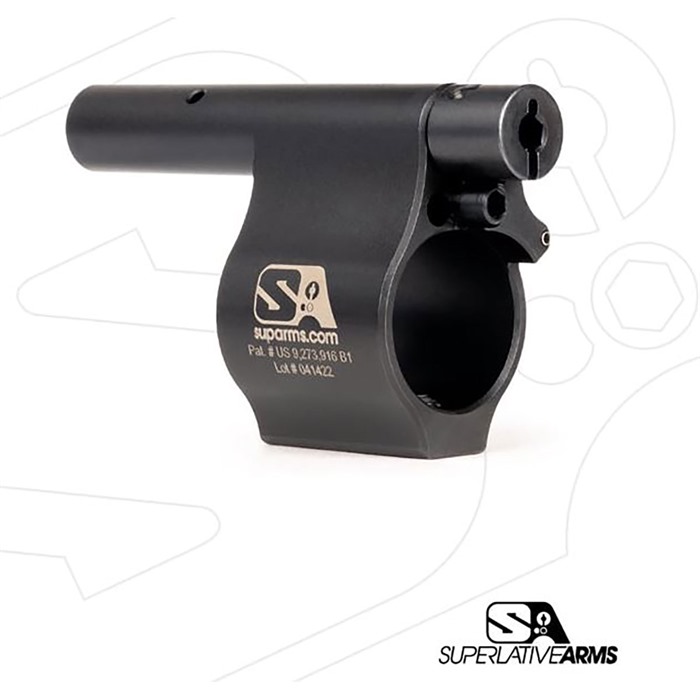

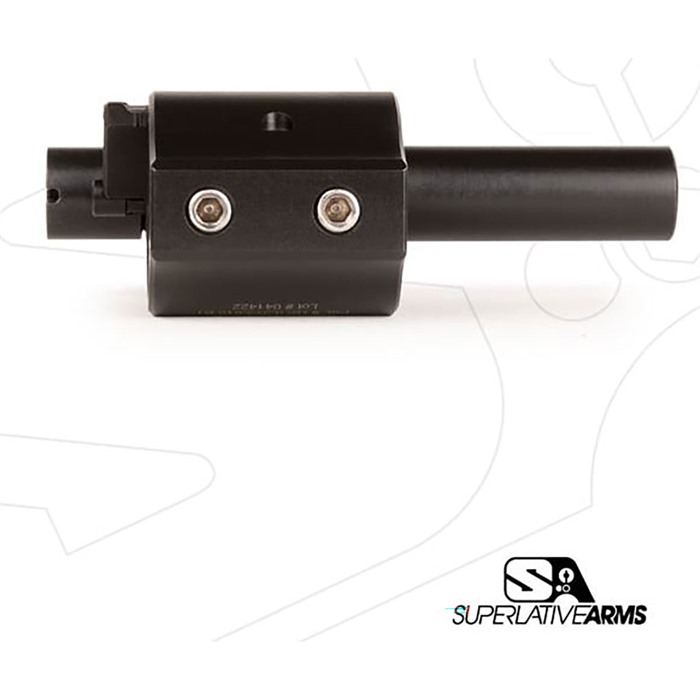

- Piston Block Befestigungsart: Clamp On, Socket Head Cap Screws
- Piston Block Material und Finish: 416 SS, Melonite

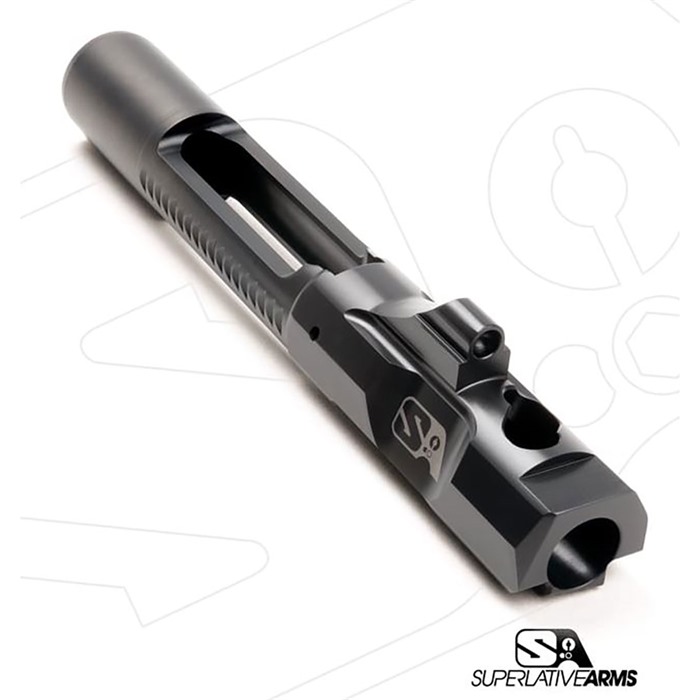

- Carrier: Ion Bonded, 1 pc. Carrier mit Skis und Dimpled Key
- Gasjustierung: 30 feste Positionen, vorne am Block
- Bleed Off Port: vorne am Block
Im Lieferumfang enthalten:
- Piston Block Assembly
- Carrier (Verschluss nicht enthalten)
- (1) 3/32" X 6" Inbusschlüssel (Werkzeug zur Justierung der Gasschraube)
- (1) 9/64" X 6" Inbusschlüssel (Werkzeug zum Ein- und Ausbau des Gasblockstopfens)
- (1) Bushing und Einsetzer-Werkzeug
- Installationsanleitung & QR-Code für das Video-Tutorial
