WILSON COMBAT

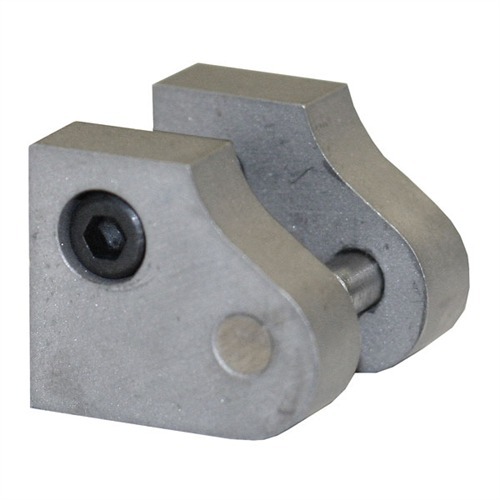

1911 BEAVERTAIL FITTING JIG

874218001735 965402000

Takes The Guesswork Out Of Beavertail Fitting

Provides a precise guide for cutting the frame tangs on 1911 Auto frames; makes short work of installing Wilson High-Ride Beavertails. Install on frame and file up to guide; file will not cut the hardened jig. Remove jig and sand or file to fit.

SPECS: Steel, in-the-white, hardened. Includes jig, fasteners and instructions. Fits Wilson and Clark beavertails.

Mehr...

Nimmt das Rätselraten aus der Beavertail-Anpassung

Bietet eine präzise Anleitung zum Schneiden der Rahmen-Tangs an 1911 Auto-Rahmen; macht die Installation von Wilson High-Ride Beavertails zum Kinderspiel. Montiere es am Rahmen und feile bis zur Führung; die Feile schneidet nicht in das gehärtete Jig. Entferne das Jig und schleife oder feile nach Bedarf.

SPECS: Stahl, unbehandelt, gehärtet. Enthält Jig, Befestigungselemente und Anleitungen. Passt für Wilson und Clark Beavertails.

Mehr...

Kundenbewertungen zu WILSON COMBAT BEAVERTAIL FITTING JIG

Anzahl der Bewertungen: 6
Von brownells.com: 6
Durchschnittliche Bewertung: 4,3

Easy to use, but labor intensive (11.10.2009)

When drop in beavertails aren't available, you should use a jig - one with the same radius as the new beavertail for best fit. Should buy beavertail & jig made by same company. Provided instructions were pretty basic, but intuitive - mount jig & cut frame to jig surface. At that point, you're not finished. Must trim frame a bit at a time until holes in frame & jig line up. Then finish triming the beavertail tab (the hardest part) to make grip safety/trigger/sear/hammer work. Use old grip safety for reference.
Pics on my instructions were poor to black, but not really needed. Cutting can be done w/fine hobby bench grinder, fine files, & Cratex tools. Metal on jig is very hard & difficult to damage. First job took long time, next will be 1/2 as much. Came out really nice for my first job as a rank amateur.

Great tool! (19.06.2011)

I have fit BT safeties in the past by hand and it took a long time to get it done and look good. Using this tool it took about 1 hour from start to final lapping of the safety. The jig is super hard and the file just bounces off of it. It will get you close then some layout fluid or permanent marker and test to get that last whisker of metal removed and have a perfect fit.

The only downside is the instructions. They pretty much are useless.

Great Tool (21.10.2011)

Great tool and very easy to use, simply screw it on the frame and file till you hit the jig. The Jig will get you about 95% of the way to a perfect fit, the other 5% is slow freehand filing. I used this with a wilson beavertail for a perfect fit.

Wonderful tool (16.12.2011)

This jig made my beavertail fitting time go from 3 hours to 1. once done with the file I only needed to fine tune a couple high spots and hit it with some emery cloth. I used wilsons beavertail and it fit perfectly

Nice little piece. (24.04.2012)

This is a nice little jig that will make things a lot easier fitting the beavertail on my Officers ACP though i must say that the instructions are a joke, why even think of including example pictures when they are just black smears on the paper.. Seriously.

Great product for W. C. Beavertails (26.02.2017)

This is a must have product if you are going to install a Wilson Combat Beavertail. The instructions can be better however after a little investigation itâs easy enough to understand. I rated this 4 out of 5 stars as I've used this on several model 1911's and on a few, some additional prep work was needed in order to make the grip function properly.

Lesen Sie 6 weitere Bewertungen bei brownells.com

45.9 45.9 1 EUR

Artikel-Nr.: 965402000
WILSON COMBAT BEAVERTAIL FITTING JIG
Herstellerproduktnummer: 402 874218001735 Bietet eine präzise Anleitung zum Schneiden der Rahmen-Tangs an 1911 Auto-Rahmen; macht die Installation von Wilson High-Ride Beavertails zum Kinderspiel. Montiere es am Rahmen und feile bis zur Führung; die Feile schneidet nicht in das gehärtete Jig. Entferne das Jig und schleife oder feile nach Bedarf.

45.9 EUR 0 45,90 € *

Nachbestellt, Lieferzeit ca. 4-12 Wochen aus dem Lager USA.

Eigenschaften: Marke: 1911

Auf die Wunschliste setzen

Frage stellen

Details

Auf die Wunschliste setzen

Frage stellen

Top Takeaways

Präzise Anleitung zum Schneiden der Rahmen-Tangs an 1911 Auto-Rahmen.
Erleichtert die Installation von Wilson High-Ride Beavertails.
Beinhaltet Vorrichtung, Befestigungen und Anweisungen; passt auf Wilson und Clark Beavertails.
